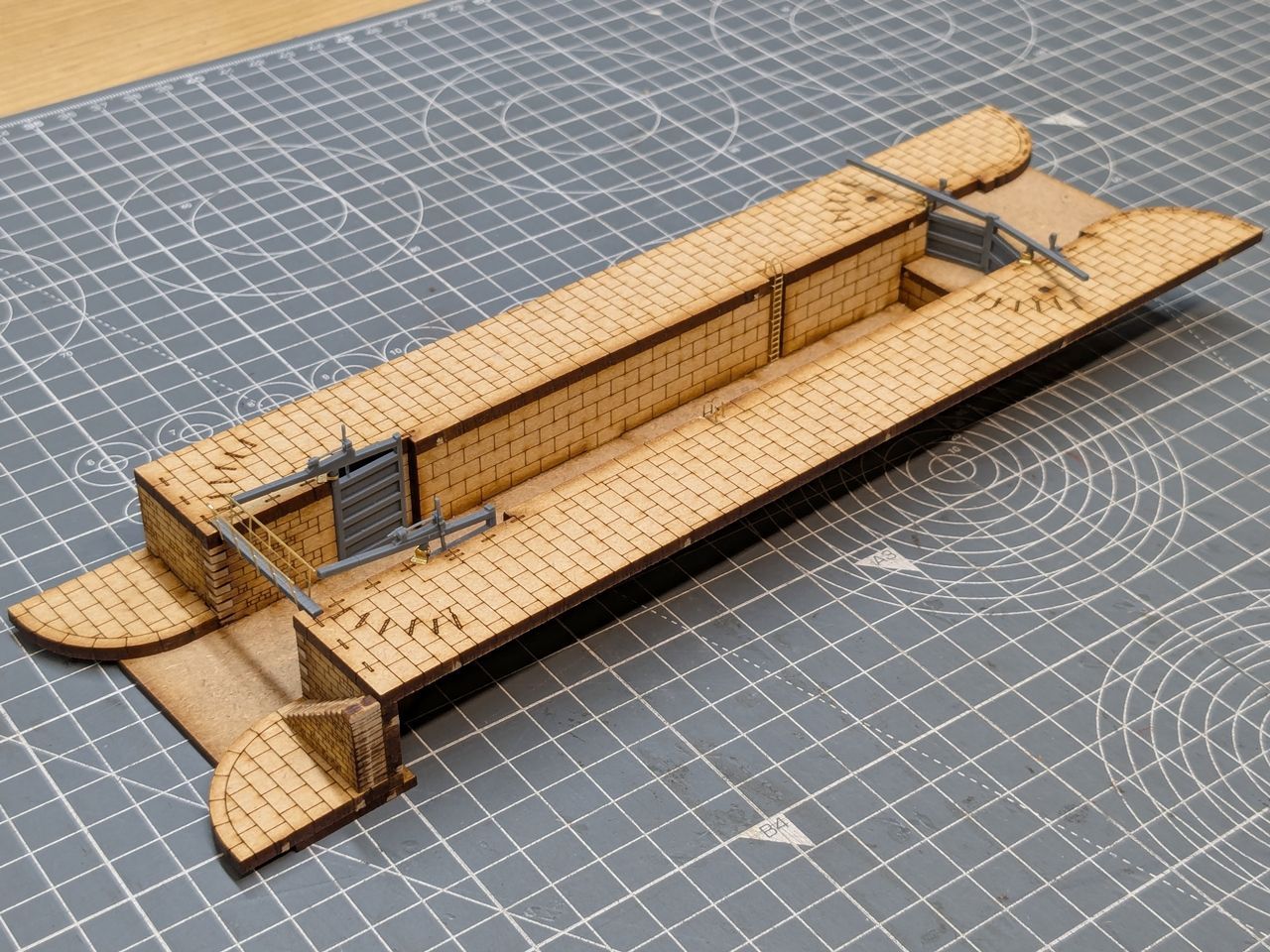

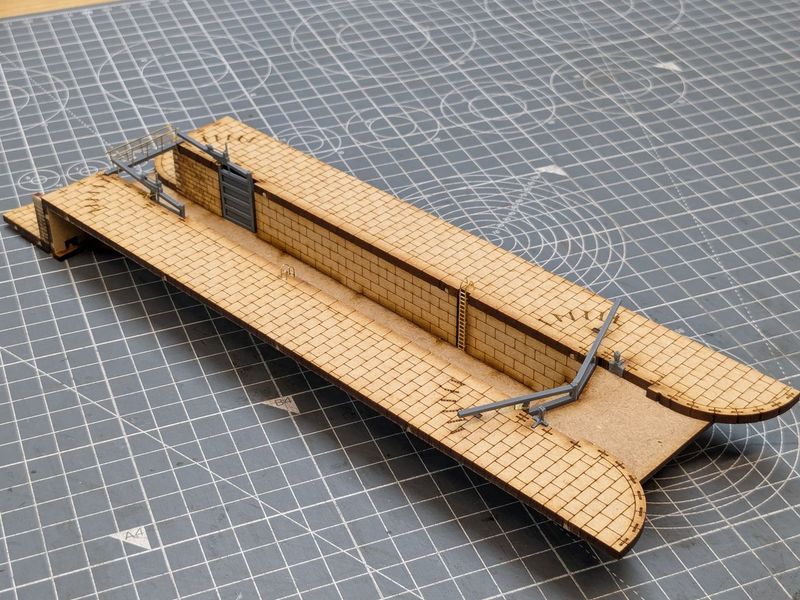

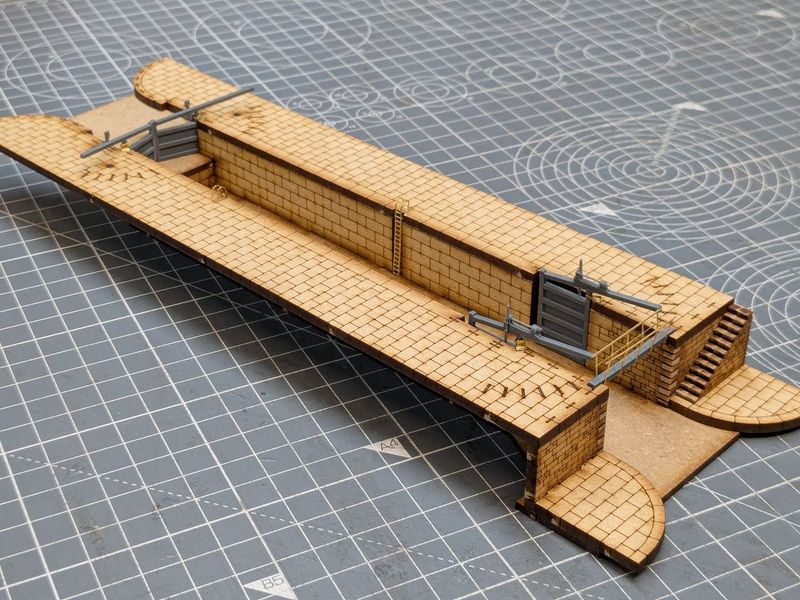

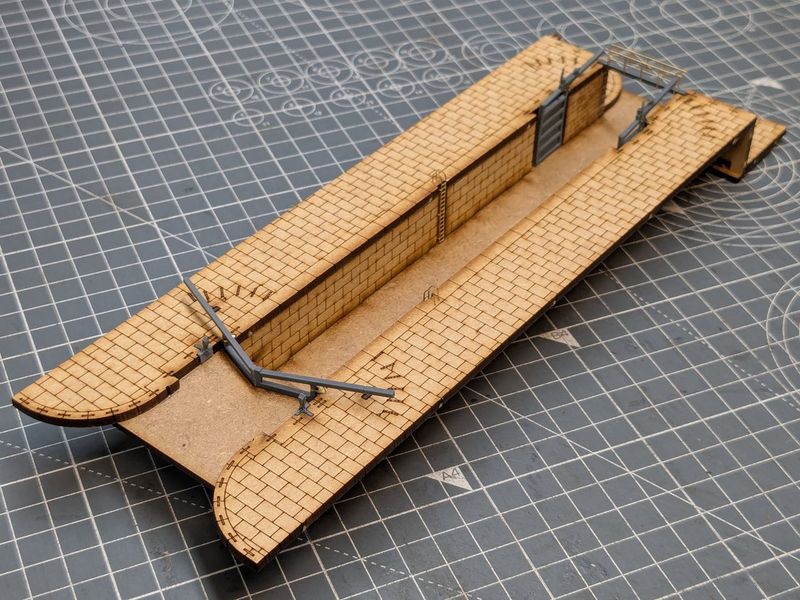

Based on the prototype locks on the Rochdale Canal, but very similar to canal locks up and down the UK, this comprehensive kit allows the modeller to recreate one of these sizeable but not often modelled structures.
Measuring 284mm long by 88mm wide when completed, the lock has a rise of 10’ (20mm) and includes fully detailed gates, winding gear, access ladders, bridge, and steps. Designed to be filled with resin ‘water’ to a depth of 1.5mm to blend the lock in with the adjacent canal sections, this model will enhance any scenic layout, and will sit just as easily in urban areas as in the countryside.
Model features:
Fully accurate dimensions scaled off prototype, with no compression;

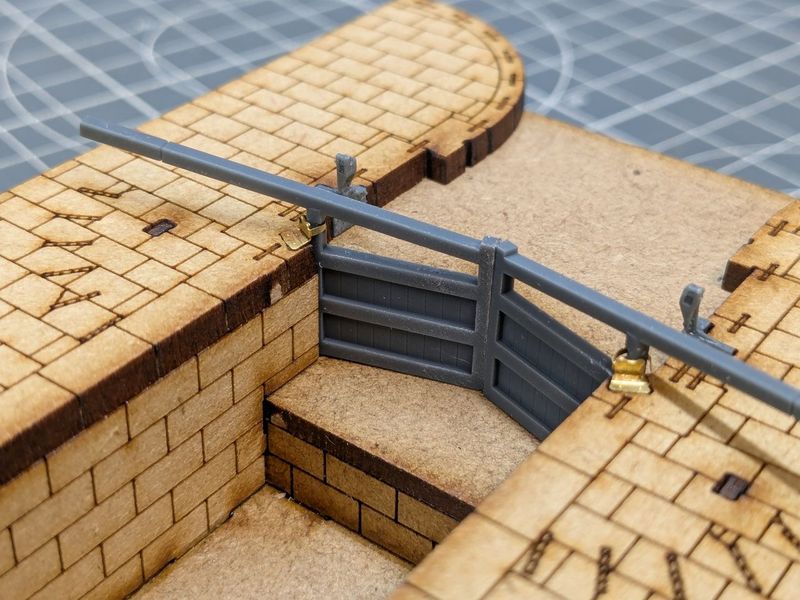

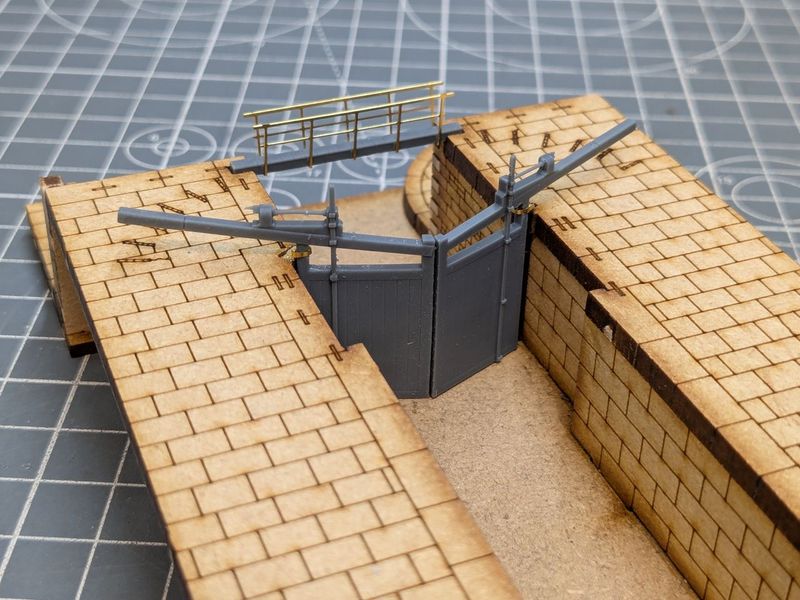

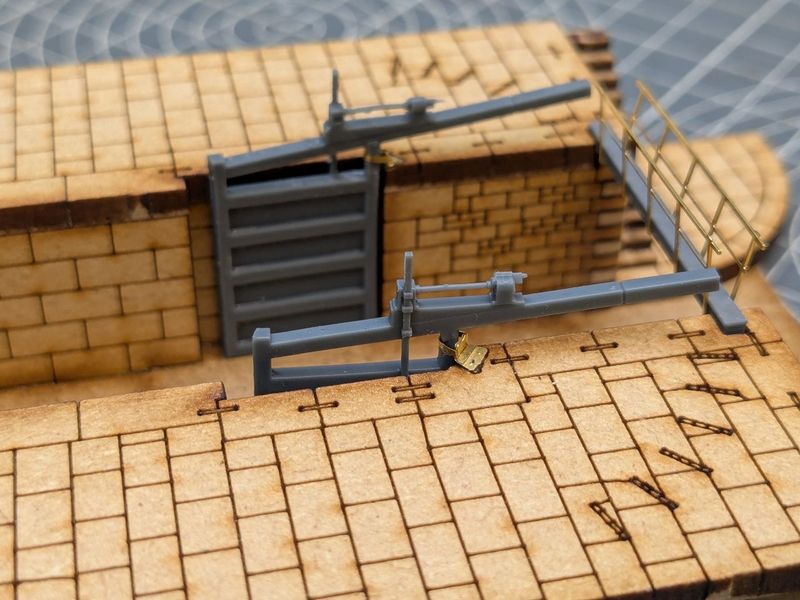

Detailed 3D-printed lock gates with sluice paddle winding gear;
Bottom gates that can be posed in any position;

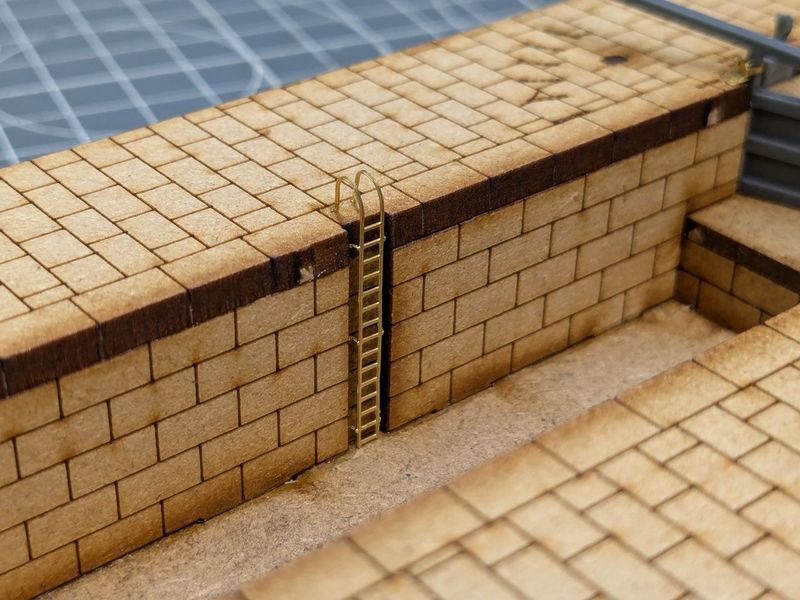

Access ladders, single-beam bridge, and other details;

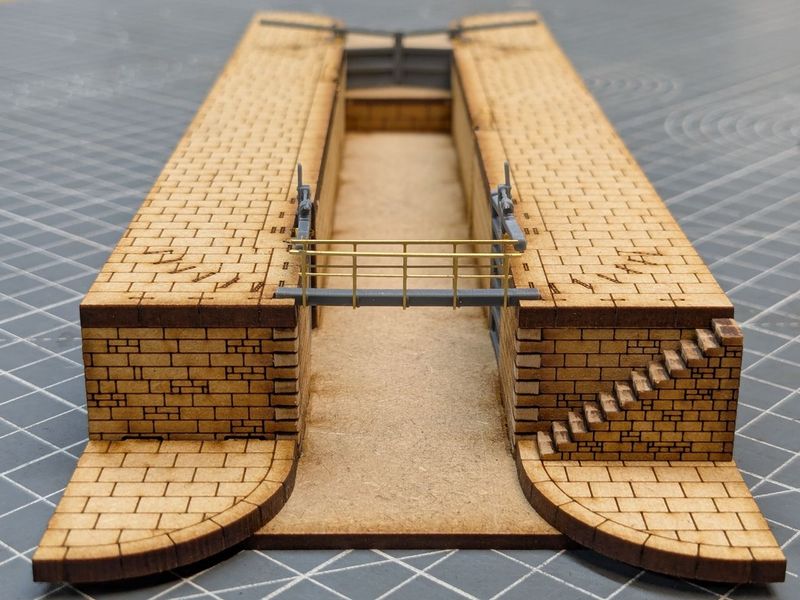

2 sets of stone steps.
The kit includes:
Laser cut parts, in 2mm and 3mm high quality MDF;
High-resolution resin 3D printed lock gates, sliuce gear, and bridge beam;
Etched brass sheet with access ladders, gate hinges, and bridge sides;
